Developing a Spring Boot Application with Microservices Monitoring

What is Microservices Monitoring?

Understanding Microservices Monitoring

Detecting Issues: Monitoring helps identify and detect issues such as performance bottlenecks, errors, and failures in microservices. Early detection of these problems allows timely intervention and prevents them from escalating into more serious problems.

Performance Optimization: By monitoring key performance metrics like response times, throughput, and resource utilization, developers can identify areas for optimization and fine-tune the performance of microservices to enhance overall system efficiency.

Ensuring Availability: Monitoring ensures that microservices are available and responsive to handle incoming requests. It helps in identifying downtimes, outages, and service disruptions promptly, allowing problems to be resolved quickly and minimizing service downtime.

Scaling and Capacity Planning: Monitoring metrics related to resource usage, traffic patterns, and microservice load enables effective scaling and capacity planning. It helps you predict future resource requirements and scaling microservices horizontally or vertically as needed to handle increasing workloads.

Examples of Microservices Monitoring

Metrics Collection:

Request Latency: The time taken to process incoming requests.

Error Rate: The percentage of requests resulting in errors.

Throughput: The number of requests processed per unit of time.

CPU and Memory Usage: Resource utilization metrics showing the load on microservices.

Log Monitoring:

Distributed Tracing:

Alerting and Notification:

Understanding Microservices Architecture

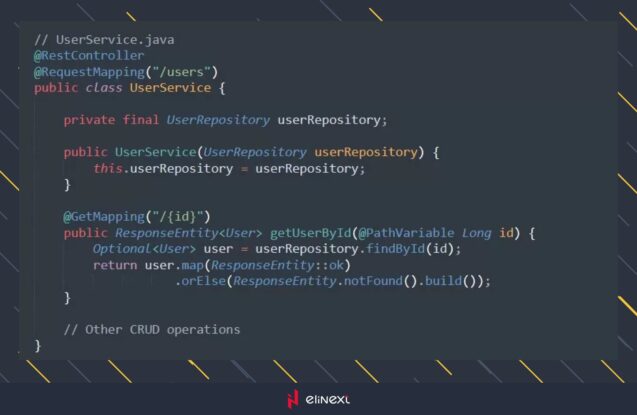

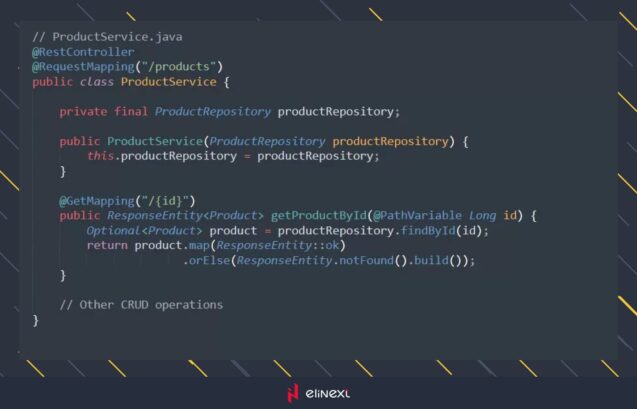

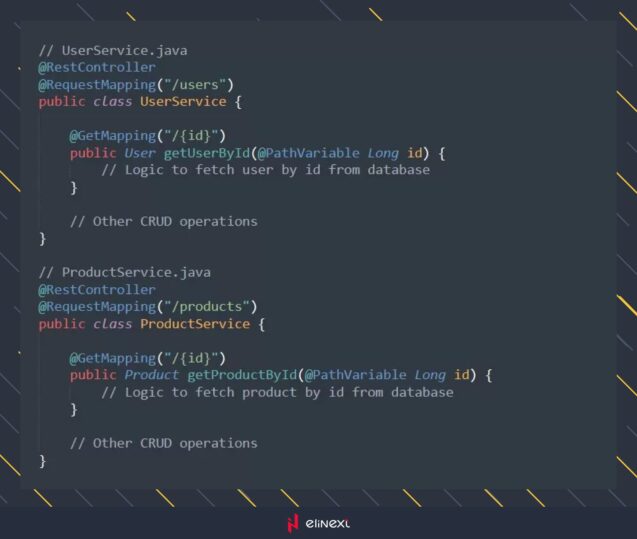

Setting Up a Spring Boot Application

Code Example:

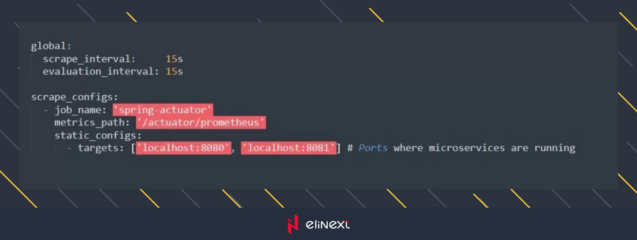

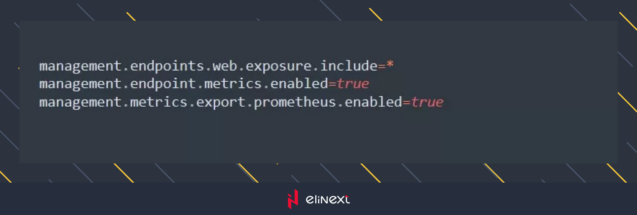

Implementing Monitoring with Prometheus and Grafana

Code Example:

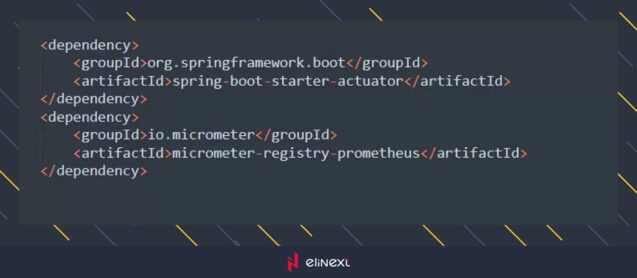

Add Prometheus and Actuator dependencies to ` pom.xml` :

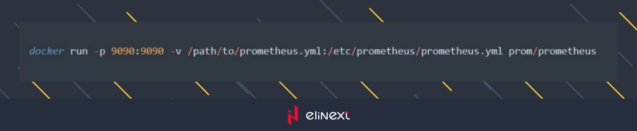

Run Prometheus server using Docker:

Set up Grafana to visualize metrics collected by Prometheus.

Enhancing the Spring Boot Microservices

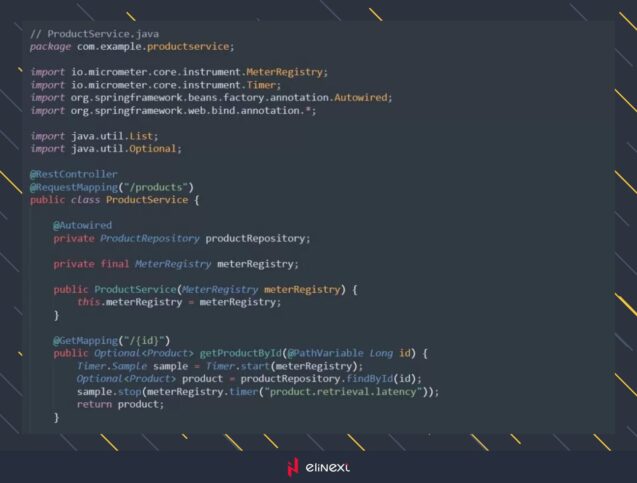

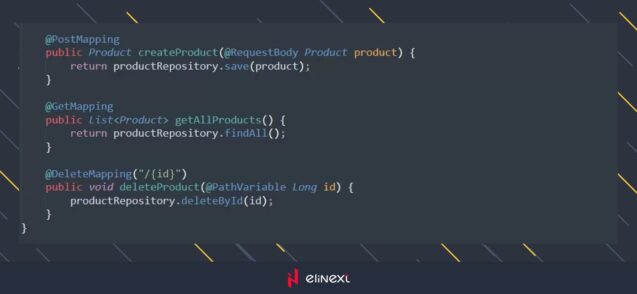

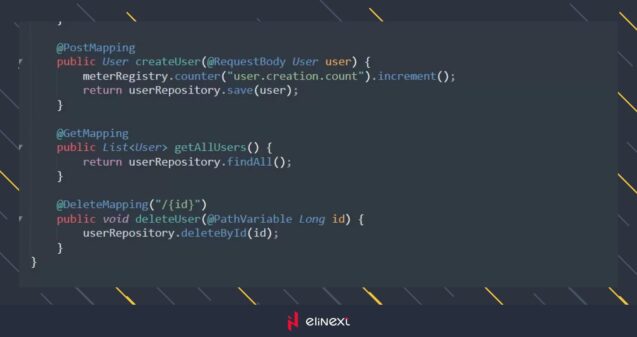

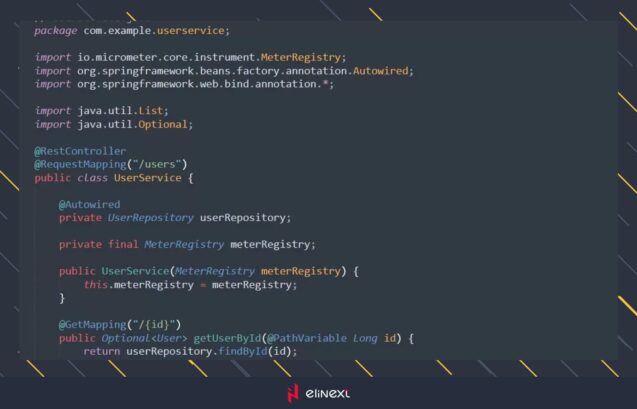

Step 1: Extending the Microservices

Step 2: Advanced Monitoring Configuration

Number of users:

Visualize the total number of users created over time.

Prometheus Query: `sum(increase(user_creation_count[1m]))`

Delay in receiving product:

Display the latency distribution for product retrieval.

Prometheus Query: `histogram_quantile(0.95, sum(rate(product_retrieval_latency_bucket[5m])) by (le))`

CPU and Memory Usage:

Show the CPU and memory usage for each microservice.

Prometheus Queries: `rate(process_cpu_seconds_total[1m])` and `process_resident_memory_bytes`

Error Rates:

Track the error rate of each microservice.

Prometheus Query: `rate(http_server_requests_seconds_count{status!~"2.."}[1m])`

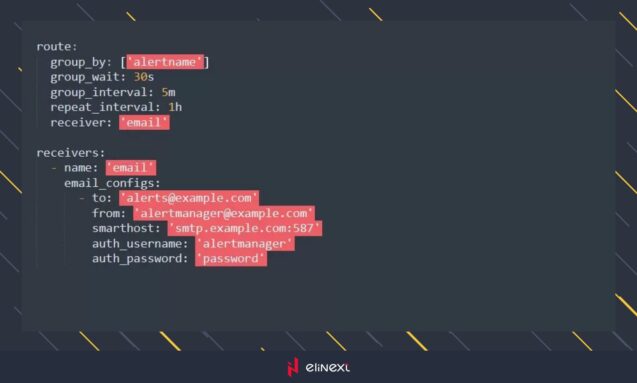

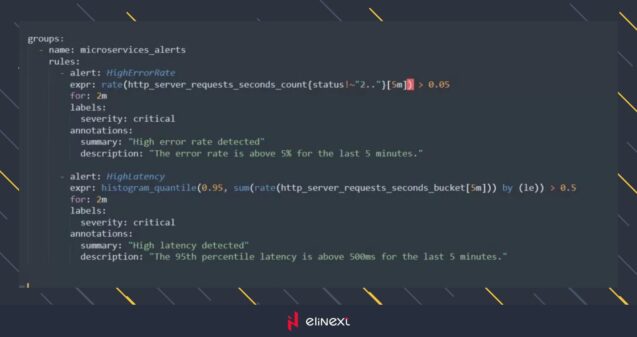

Step 3: Setting Up Alerting

Step 4: Running and Testing the Setup

Start Microservices:

Ensure both `UserService` and `ProductService` are running.

Start Prometheus:

` docker run -p 9090:9090 -v /path/to/prometheus.yml:/etc/prometheus/prometheus.yml prom/prometheus `

Start Grafana:

`docker run -d -p 3000:3000 grafana/grafana`

Start Alertmanager:

`docker run -d -p 9093:9093 -v /path/to/alertmanager.yml:/etc/alertmanager/alertmanager.yml prom/alertmanager`

Test panels and alerts:

Access Grafana at ` http://localhost:3000` to view the dashboards.

Trigger alerts by simulating high error rates or latency and check for alerts in Alertmanager.

Advantages of Microservices Monitoring for Spring Boot Applications

Early Detection of Issues

Improved Visibility and Insights

Improved Performance Optimization

Proactive Capacity Planning

Fault Isolation and Resilience

Continuous Improvement and Iteration

Conclusion
